Basic Idea:

• Measure the magnetic field of a permanent magnet, and straight and coiled wire.

• 7

	What:	How Many:	Where:

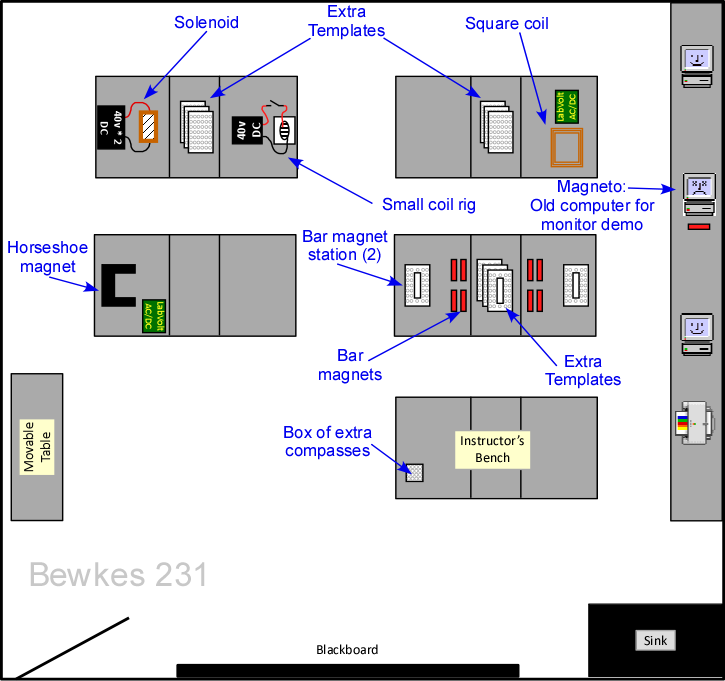

The equipment below is used to set up individual experiments, shared by everyone. See the picture for setup location
Bar Magnet Stations (2 setups)
	Small Compass	40 each	non-Majors storeroom, shelf JJ4
	Bar magnet	1 each	Locked in steel cabinet
	Bar magnet paper template	1 each	Print two copies of this template
	Extra bar magnets (place as shown in map below)	6 or 8	Locked in steel cabinet
	Extra Small Compasses (place box on instructor's table)	The whole box	non-Majors storeroom, shelf JJ4
Small Coil Rig
	Small Yellow Coil Rig (mounted on 2×6's)	1	non-Majors storeroom, shelf P4
	Double pole, double throw (DPDT) knife switch (to reverse current)	1	non-Majors storeroom, shelf P4 (with apparatus)
	Wires (Four)	Two 12" - Red & Black One 24" - Red One 48" - Black	Bewkes 231 (Phys 152 Lab)
	Small Compass	33	non-Majors storeroom, shelf JJ4
	40v DC Power supply	1	Majors storeroom, shelf C3
Large Solenoid
	Digital Multimeter (1 ammeter, 1 voltmeter)	2	Majors storeroom, locked in steel cabinet
	Pasco Air Coil Solenoid (N = 560 turns)	1	non-Majors storeroom, shelf P4
	40v DC Dual Power supply	1	Majors storeroom, shelf C3
	Wires (Five)	Two 12" - Red Three 24" - 1 Red & 2 Black	Bewkes 231 (Phys 152 Lab)
	Plastic Ruler	1	Grab one from front of lab
Square Coil
	Square coil	1	non-Majors storeroom, shelf P4
	Double tap switch (to reverse current)	1	non-Majors storeroom, shelf P4 (with apparatus)
	LabVolt AC/DC power supply (green)	1	Majors storeroom, shelf C3
	Wire (Four)	Two 12" - Red Two 12" - Black	Bewkes 231 (Phys 152 Lab)
	Alligator clips	2	Majors storeroom, shelf B2
	Small Compass	34	non-Majors storeroom, shelf JJ4
Horseshoe magnet - "Jumping Wire Demo"
	LabVolt AC/DC power supply photo (green)	1	Lecture/demo room (Valentine 205A)
	Large horseshoe magnet (1.0 kG)	1	Lecture/demo room (Valentine 205A)
	Wire (Note: this is a special wire for this experiment; see photo on details page)	1	Lecture/demo room (Valentine 205A)
	Tap switch	1	Lecture/demo room (Valentine 205A)
	Small piece of 4×4	1	Lecture/demo room (Valentine 205A)
	Quarters: U.S. & Canadian	Whatever's there	Lecture/demo room (Valentine 205A)
	Wire (12")	1	Bewkes 231 (Phys 152 Lab)
Additional Demo stuff
	Iron filings suspended in silicon oil	1	Lecture/demo room (Valentine 205A)
	Cylindrical magnets for iron filings gizmo	1	Lecture/demo room (Valentine 205A)
	PowerMac 7500 & CRT display ("Magneto 2")	1	non-Majors storeroom, shelf LL5
	Powerstrip for Magneto	1	Ask Jeff

Notes:

• See the photo details page; experiments need to be spread around the room – but not near the computers – so that the magnetic fields don't interfere with each other
  • Place extra compasses on instructor's table
  • Caution: The horseshoe magnet is very heavy (48 lbs ≈ 22 kg), so exercise caution when lifting. Remember to bend at the knees!
  • Things for Jeff to print:
    • 2 copies of Bar Magnet B Field Template for the bar magnet experiment
    • 6 copies of magnet warning sign (2 for outside door, 1 for board, 3 for the back wall)
  • If compasses get their orientations flipped, put them in the box marked "backwards compasses". Jeff will fix them following the instructions on Re-Aligning a Compass Using a Magnetizer

• Bar Magnet setup (photos):
  • 2 setups
  • Place 40 compasses on the template, face down (makes arrow direction easier to see)
  • Leave bar magnet off template; students will put their own magnet there

• Small Coil rig setup (photos):
  • 1 setup
  • The DPDT switch is used to easily reverse the direction of current through the coil
    • Connect the wires from the power supply to the color-coded terminals on the side of the switch labeled battery
    • Connect the wires from the coil to the color-coded terminals on the Direct side of the switch
  • Place 33 compasses on the coil rig board, face down
    • Note that one compass sits inside the coil
  • Set DC power supply to 3.0 volts





• Pasco Air Coil Solenoid setup (photos):
  • Use a dual regulated power supply (VDC) to power the solenoid
  • Note that the ammeter needs to be connected to the 20A port (since I > 2A)
  • Two spade lugs should already be attached to the coil, which makes it easier to connect the voltmeter (see photos)
  • Jeff will configure the power supply settings:
    • Set the current to 3.0 amps, which will be at a voltage around 3.0 volts. The current limiter will need to be adjusted to allow this much current
    • Put sticky notes on ammeter and voltmeter

• Square coil setup (photos):
  • Connect wire from positive terminal of power supply to copper wire labeled "UP"
  • A double-tap switch is used to reverse the direction of current through the coil without having to turn the power supply off between groups
    • Connect the wires from the power supply to the color-coded terminals on the tap switch labeled BAT. (Battery)
    • Connect the wires from the coil to the color-coded terminals on the tap switch labeled APP. (I assume this stands for Appliance)
  • Set the range switch to position A (flip the switch up), and set the dial to 5
  • Distribute 34 compasses on foam board platform as shown in setup photos.

• Jumping wire setup (photos):
  • Set range switch to A, set dial to 6
